Longitude Casework Exam Room

Longitude casework is finished with a decorative, thermally fused laminate on all surfaces for infection control and a finished look without substrate absorption.

Longitude Color chart

click image to enlarge

Longitude is a modular cabinetry system of interchangeable components for today’s health care facilities. Configurations for patient rooms, exam rooms, caregiver work areas and other clinical spaces are easily installed. Reconfigurable Modularity means the same casework and counter tops can be reused when facility growth or remodeling changes the original layout or function.

In addition to pleasing aesthetics, Longitude is designed for easy cleaning. All Longitude finishes meet today’s healthcare facilities’ stringent housekeeping requirements. Most importantly, cabinetry floor clearance provides proper cleaning access.

Longitude supports sustainable manufacturing by partnering with suppliers who share our commitment to “green” stewardship of the environment. Our LEED endorsements promote the reduction of air pollutants, waste and material usage, while improving air quality and promoting occupant wellness. Longitude can contribute to LEED points for materials and resources 4.1, 4.2, and 5.2. Intensa uses 100% recycled wood fiber.

Longitude empowers architects, designers and facility planners to create a warm, inviting environment with an extensive selection of design options. With Longitude you can create a positive patient experience while maximizing efficiency for the healthcare provider.

Rapidly changing health care facilities emerging as leaders today face challenges of obsolescence tomorrow. Longitude’s continuously evolving designs and modularity help today’s health care providers keep pace with today’s patient needs and requirements.

Longitude’s flexible solutions facilitate cost savings during installation, purpose updates, reconfigurations and replacement of damaged components. Longitude depreciates in 7 years as compared to 39 years for a fixed or built-in product.

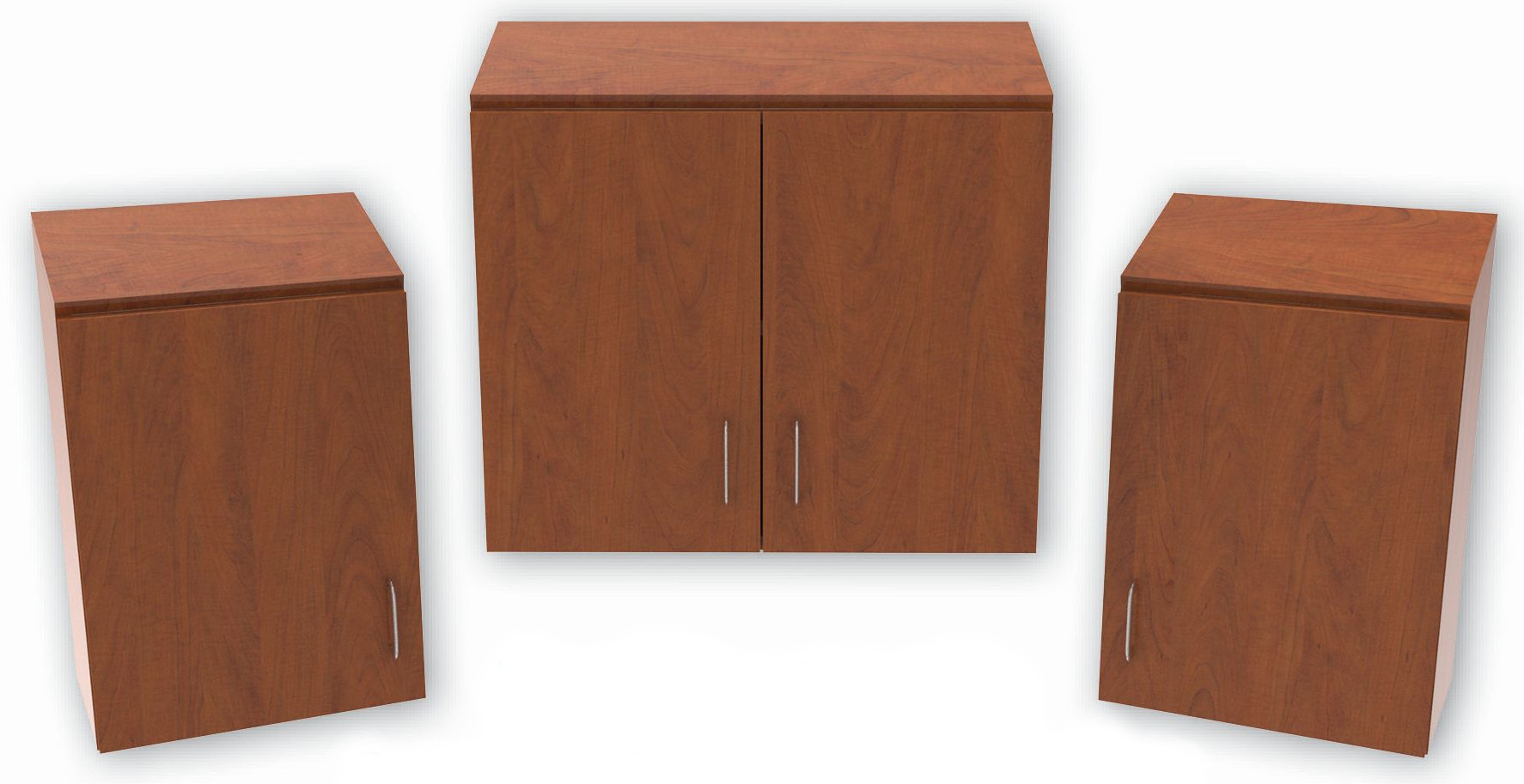

Wall Cabinets Sanitary Slope Top Standard
itemwdh
LOWC18122418 in. / 45.72 cm12 in. / 30.48 cm24 in. – 28 in. / 60.96 cm – 71.12 cm
LOWC24122424 in. / 60.96 cm12 in. / 30.48 cm24 in. – 28 in. / 60.96 cm – 71.12 cm
LOWC30122430 in. / 76.2 cm12 in. / 30.48 cm24 in. – 28. in / 60.96 cm – 71.12 cm
LOWC36122436 in. / 91.44 cm12 in. / 30.48 cm24 in. – 28 in. / 60.96 cm – 71.12 cm

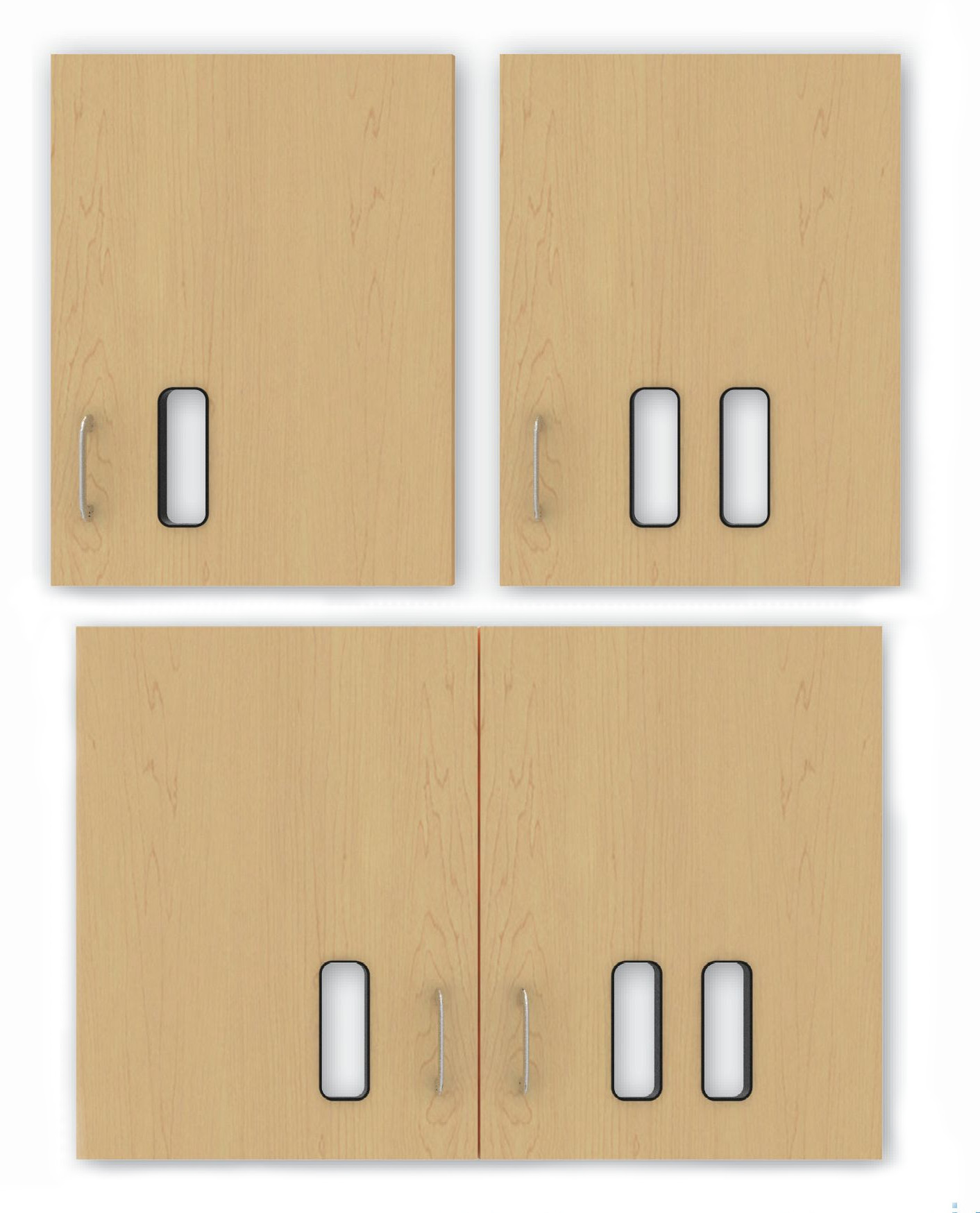

Glove Box Cutouts With Glove Bins
itemsml
GB1x3 in. / 7.62 cm X 4 in. / 10.16 cm3 in. / 7.62 cm X 5 in. / 12.7 cm3 in. / 7.62 cm X 6 in. .15.24 cm
GB2x3 in. / 7.62 cm X 4 in. / 10.16 cm3 in. / 7.62 cm X 5 in. / 12.7 cm3 in. / 7.62 cm X 6 in. .15.24 cm
GB3x3 in. / 7.62 cm X 4 in. / 10.16 cm3 in. / 7.62 cm X 5 in. / 12.7 cm3 in. / 7.62 cm X 6 in. .15.24 cm

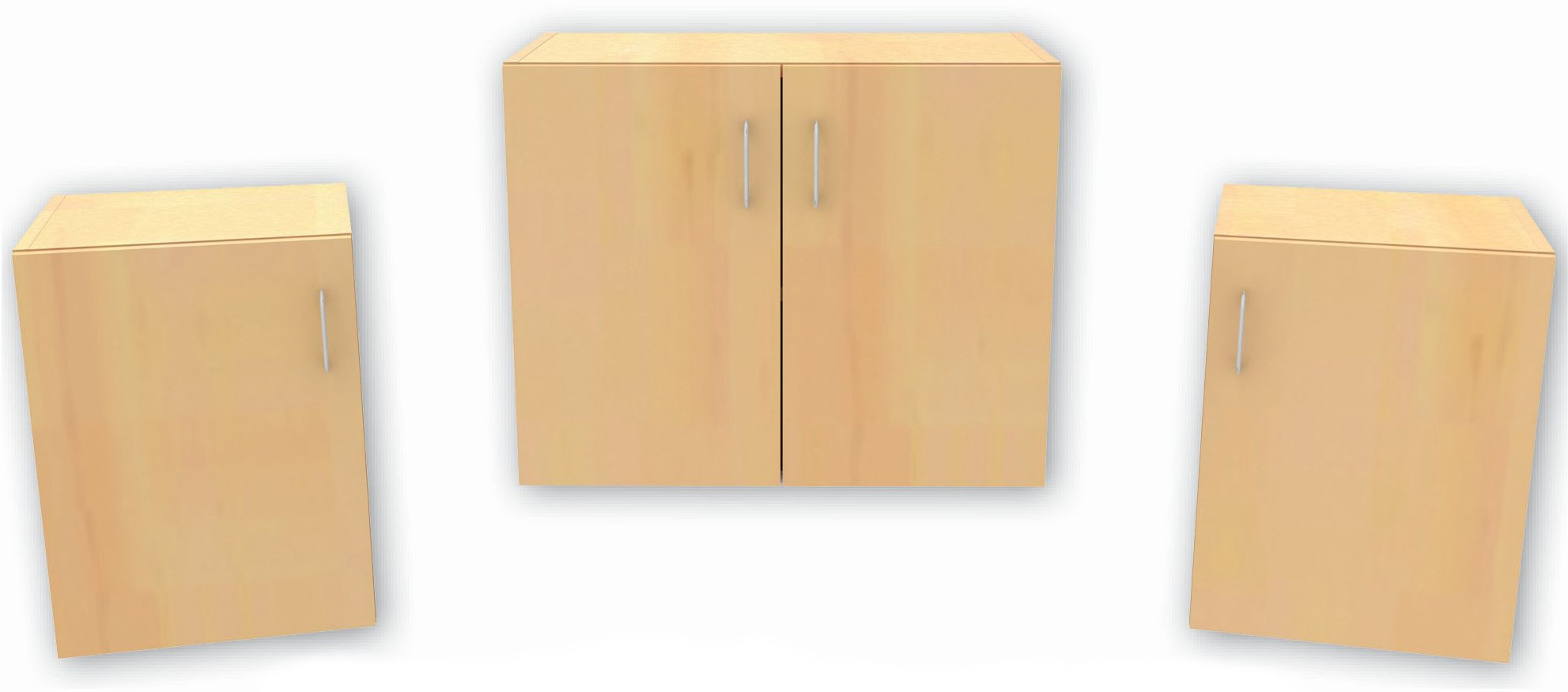

Drawer Door Base Cabinets
itemwdh
LODB18182418 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODB24182424 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODB30182430 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODB36182436 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

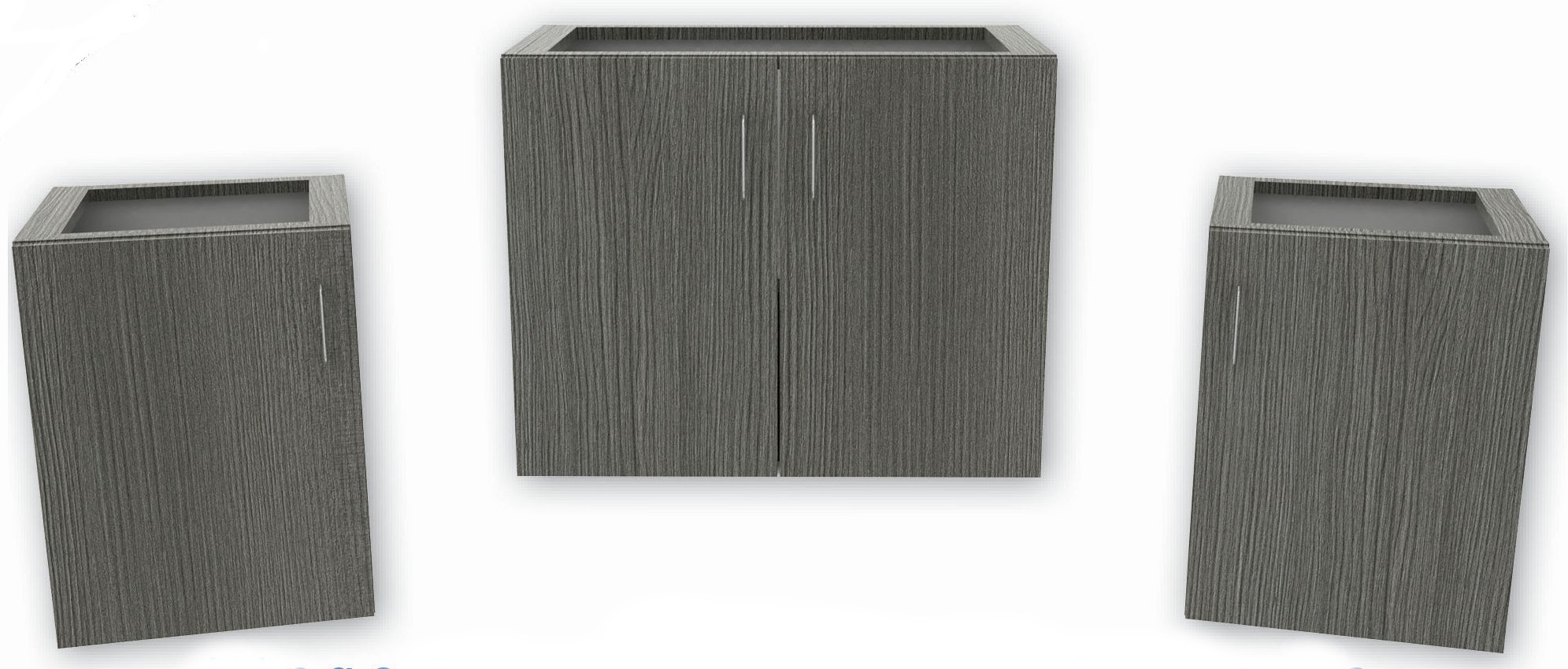

Hinged Door Sink Base Cabinets
itemwdh
LOHC18182418 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOHC24182424 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOHC30182430 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOHC36182436 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
Sink Base Cabinet
itemwdh
LOSC18182418 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOSC24182424 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOSC30182430 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOSC36182436 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
Three Drawer Base Cabinet
itemwdh
LODF181824A18 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODF241824A24 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODF301824A30 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODF361824A36 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

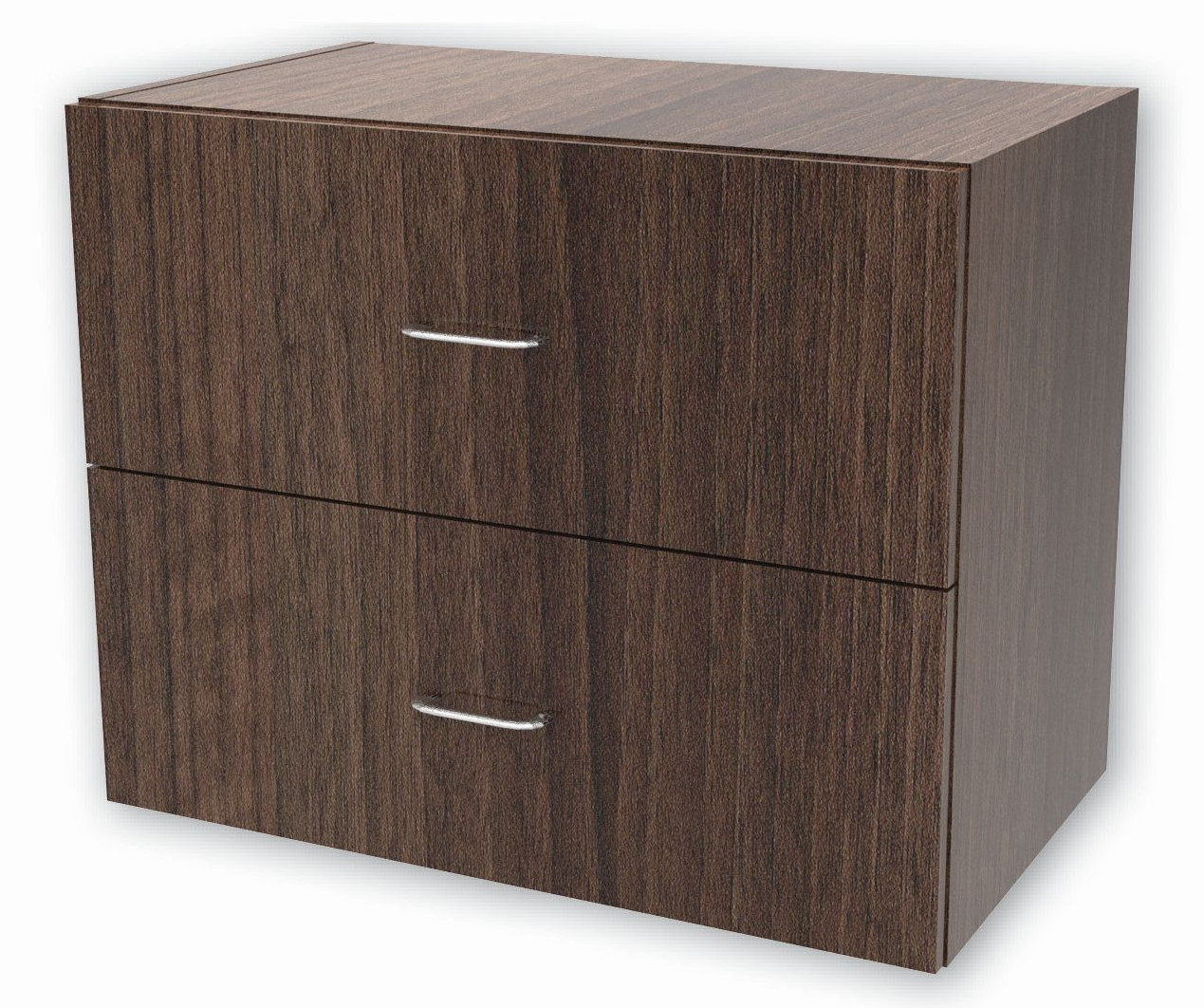

Two Drawer Base Cabinet
itemwdh
LODF181824B18 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODF241824B24 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODF301824B30 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LODF361824B36 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

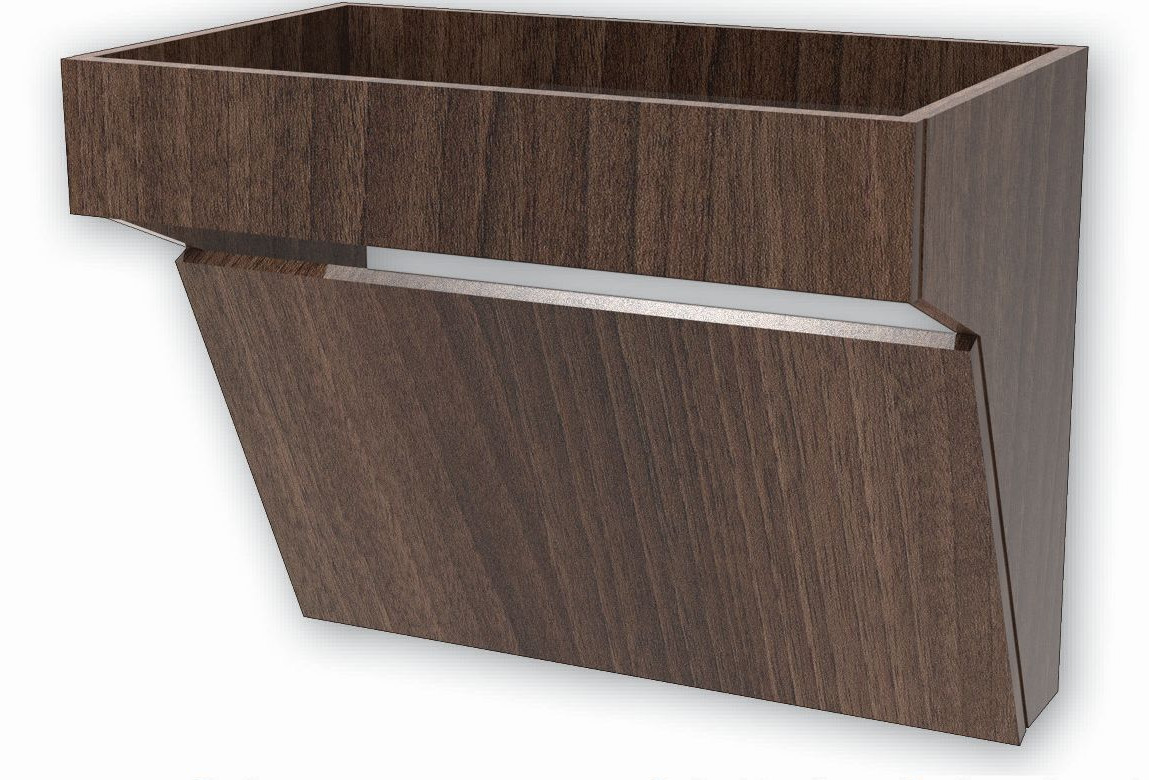

Knee Clearance ADA Sink Base
itemwdh
LOSC181824KNC18 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOSC241824KNC24 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOSC301824KNC30 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LOSC361824KNC36 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
Wardrobe and Mirror
itemwdh
LOWDC18187218 in. / 45.72 cm17.5 in. / 44.45 cm72in. / 182.88 cm – 76 in. / 193.04 cm
LOWDC24187224 in. / 60.96 cm17.5 in. / 44.45 cm72in. / 182.88 cm – 76 in. / 193.04 cm

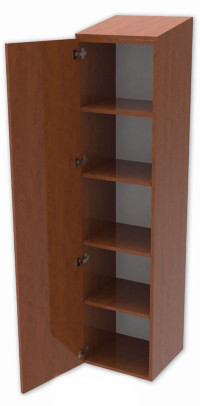

Storage and Shelves
itemwdh
LOTSC18187218 in. / 45.72 cm17.5 in. / 44.45 cm72in. / 182.88 cm – 76 in. / 193.04 cm
LOTSC24187224 in. / 60.96 cm17.5 in. / 44.45 cm72in. / 182.88 cm – 76 in. / 193.04 cm
Wall Mount laptop Station
itemwdh
LOWMLTS20 in / 50.8 cm4 in / 10.16 cm20 in / 50.8 cm
LOWMLTS-LPC20 in / 50.8 cm4 in / 10.16 cm20 in / 50.8 cm
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the state of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov/products/furniture-products
