Latitude Casework


Latitude Casework

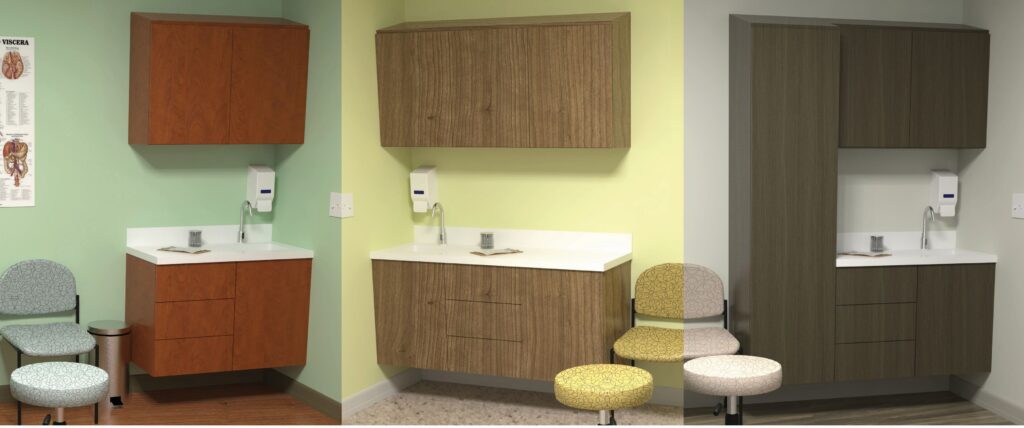

Latitude Casework Exam Rooms

Latitude casework is finished with a decorative, thermally fused laminate on all surfaces for infection control and a finished look without substrate absorption. External handles and pulls are not integrated on the Latitude line for comprehensive infection control.

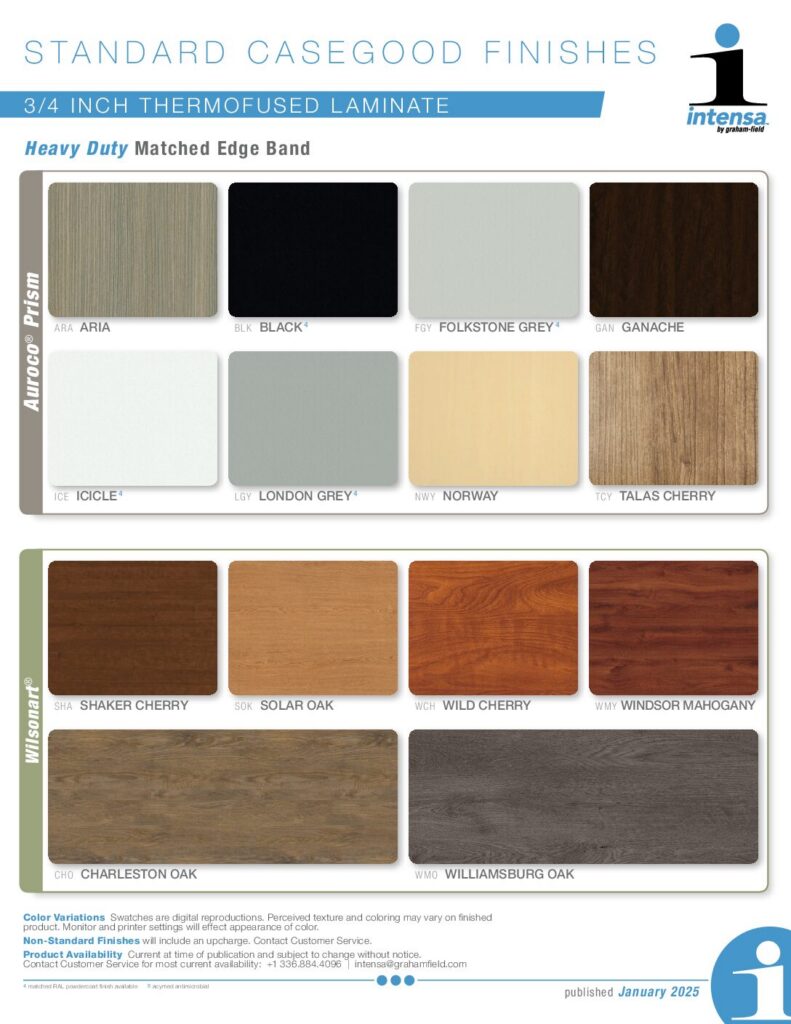

Latitude Standard Casework Finish Guide color Chart
Click to enlarge image.

Latitude is a modular cabinetry system of interchangeable components for today’s health care facilities. Configurations for patient rooms, exam rooms, caregiver work areas and other clinical spaces are easily installed. Reconfigurable Modularity means the same casework and counter tops can be reused when facility growth or remodeling changes the original layout or function.

In addition to pleasing aesthetics, Latitude is designed for easy cleaning. All Latitude finishes meet today’s healthcare facilities’ stringent housekeeping requirements including cabinetry floor clearance provides proper cleaning access.

Latitude supports sustainable manufacturing by partnering with suppliers who share our commitment to “green” stewardship of the environment. Our LEED endorsements promote the reduction of air pollutants, waste and material usage, while improving air quality and promoting occupant wellness. Latitude can contribute to LEED points for materials and resources 4.1, 4.2, and 5.2. Intensa uses 100% recycled wood fiber.

Latitude empowers architects, designers and facility planners to create a warm, inviting environment with an extensive selection of design options. You can create a positive patient experience while maximizing efficiency for the healthcare provider.

Rapidly changing health care facilities emerging as leaders today face challenges of obsolescence tomorrow. Latitude’s modularity is flexible to reconfigure to future needs.

Latitude’s flexible solutions facilitate cost savings during installation, purpose updates, reconfigurations and replacement of damaged components. Latitude depreciates in 7 years as compared to 39 years for a fixed or built-in product.

Latitude casework is finished with a decorative, thermally fused laminate on all surfaces for infection control and a finished look without substrate absorption. External handles and pulls are not integrated on the Latitude line for comprehensive infection control.

Latitude Standard Casework Finish Guide color Chart
Click to enlarge image.

Latitude is a modular cabinetry system of interchangeable components for today’s health care facilities. Configurations for patient rooms, exam rooms, caregiver work areas and other clinical spaces are easily installed. Reconfigurable Modularity means the same casework and counter tops can be reused when facility growth or remodeling changes the original layout or function.

In addition to pleasing aesthetics, Latitude is designed for easy cleaning. All Latitude finishes meet today’s healthcare facilities’ stringent housekeeping requirements including cabinetry floor clearance provides proper cleaning access.

Latitude supports sustainable manufacturing by partnering with suppliers who share our commitment to “green” stewardship of the environment. Our LEED endorsements promote the reduction of air pollutants, waste and material usage, while improving air quality and promoting occupant wellness. Latitude can contribute to LEED points for materials and resources 4.1, 4.2, and 5.2. Intensa uses 100% recycled wood fiber.

Latitude empowers architects, designers and facility planners to create a warm, inviting environment with an extensive selection of design options. You can create a positive patient experience while maximizing efficiency for the healthcare provider.

Rapidly changing health care facilities emerging as leaders today face challenges of obsolescence tomorrow. Latitude’s modularity is flexible to reconfigure to future needs.

Latitude’s flexible solutions facilitate cost savings during installation, purpose updates, reconfigurations and replacement of damaged components. Latitude depreciates in 7 years as compared to 39 years for a fixed or built-in product.

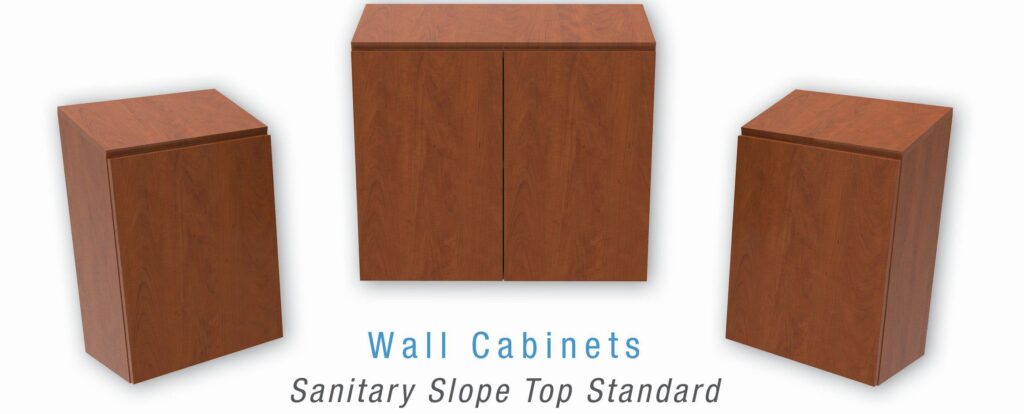

Wall Cabinets Sanitary Slope Top Standard
ItemWDH
LAWC181224 18 in. / 45.72 cm12 in. / 30.48 cm24 in. - 28 in. / 60.96 cm - 71.12 cm
LAWC24122424 in. / 60.96 cm12 in. / 30.48 cm24 in. - 28 in. / 60.96 cm - 71.12 cm
LAWC30122430 in. / 76.2 cm12 in. / 30.48 cm24 in. - 28. in / 60.96 cm - 71.12 cm
LAWC36122436 in. / 91.44 cm12 in. / 30.48 cm24 in. - 28 in. / 60.96 cm - 71.12 cm

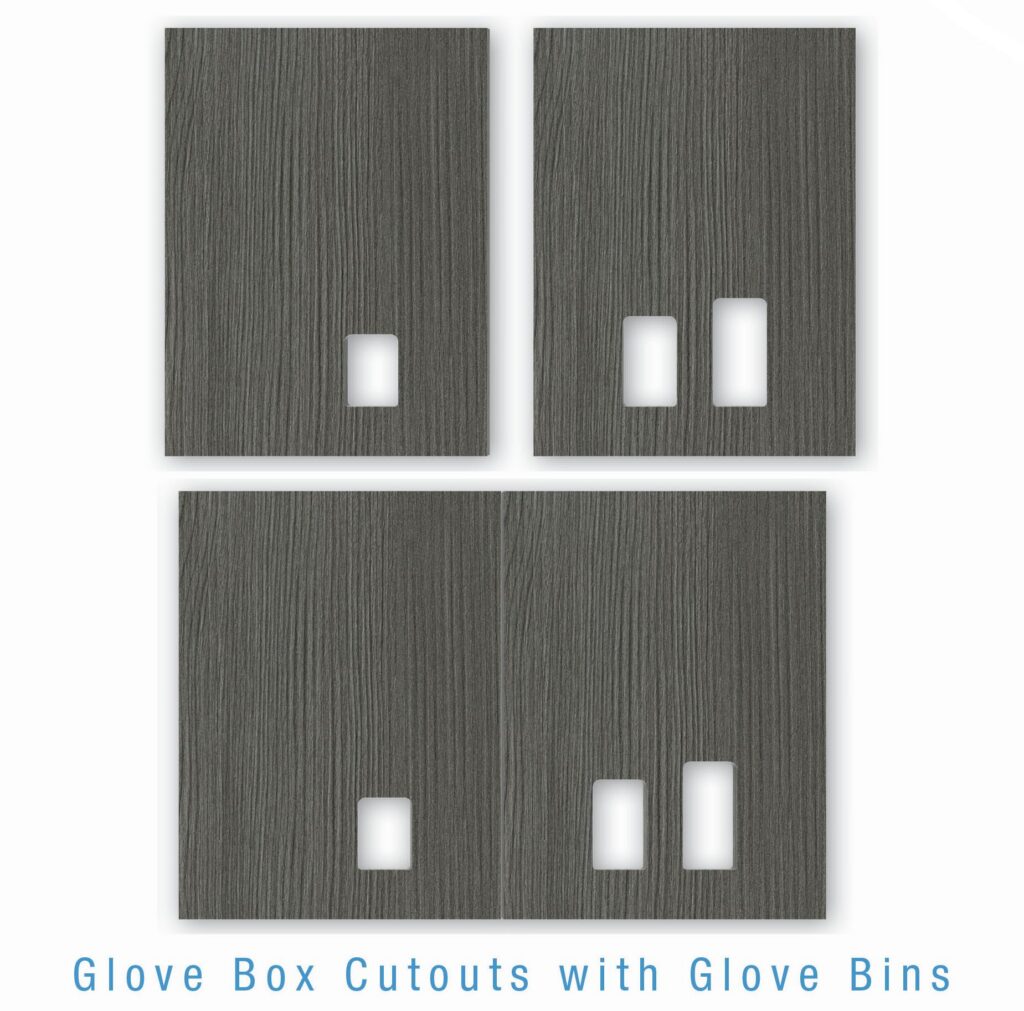

Glove Box cutout with Glove Bins
itemsml
GB1x3 in. / 7.62 cm X 4 in. / 10.16 cm3 in. / 7.62 cm X 5 in. / 12.7 cm3 in. / 7.62 cm X 6 in. 15.24 cm
GB2x3 in. / 7.62 cm X 4 in. / 10.16 cm3 in. / 7.62 cm X 5 in. / 12.7 cm3 in. / 7.62 cm X 6 in. 15.24 cm
GB3x3 in. / 7.62 cm X 4 in. / 10.16 cm3 in. / 7.62 cm X 5 in. / 12.7 cm3 in. / 7.62 cm X 6 in. 15.24 cm

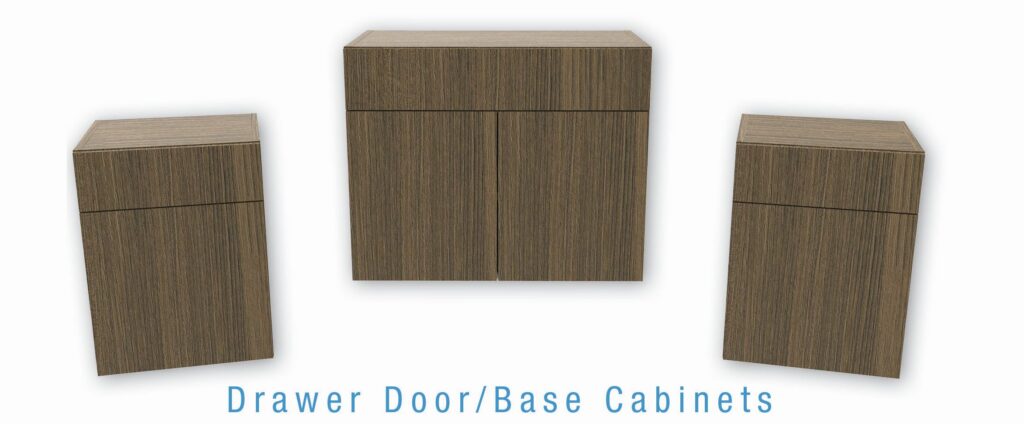

Drawer Door/Base Cabinets
itemWDH
LADB18182418 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADB24182424 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADB30182430 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADB36182436 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
Hinged Door Base Cabinets
ItemWDH
LAHC18182418 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LAHC24182424 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LAHC24182430 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LAHC24182436 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

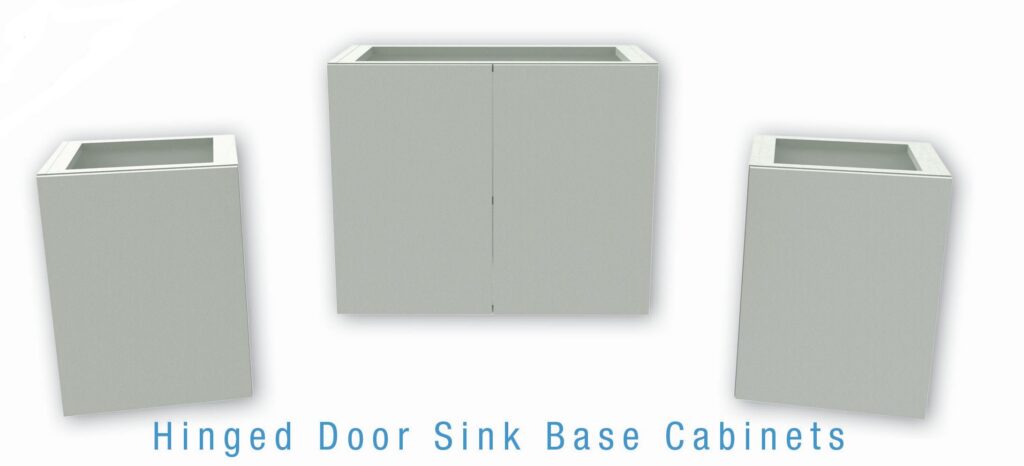

Hinged Door Sink Base Cabinets
ItemWDH
LASCD18182418 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASCD24182424 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASCD30182430 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASCD36182436 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

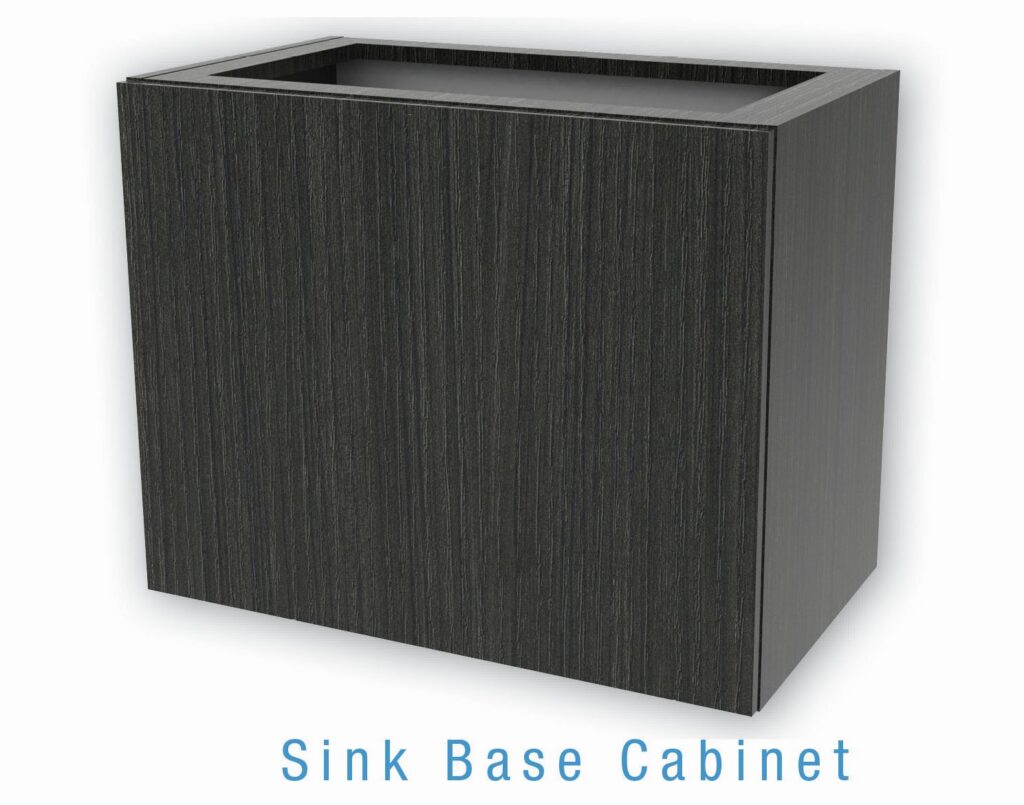

Sink Base Cabinet
ItemWDH
LASC18182418 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASC24182424 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASC24182430 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASC24182436 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

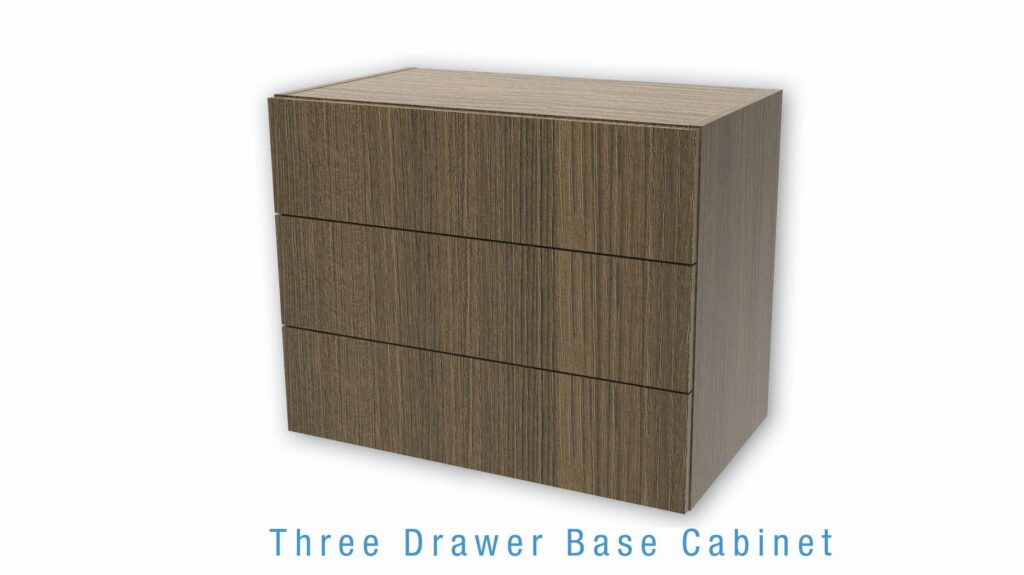

Three Drawer Base Cabinet
ItemWDH
LADF181824A18 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADF181824A24 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADF181824A30 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADF181824A36 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

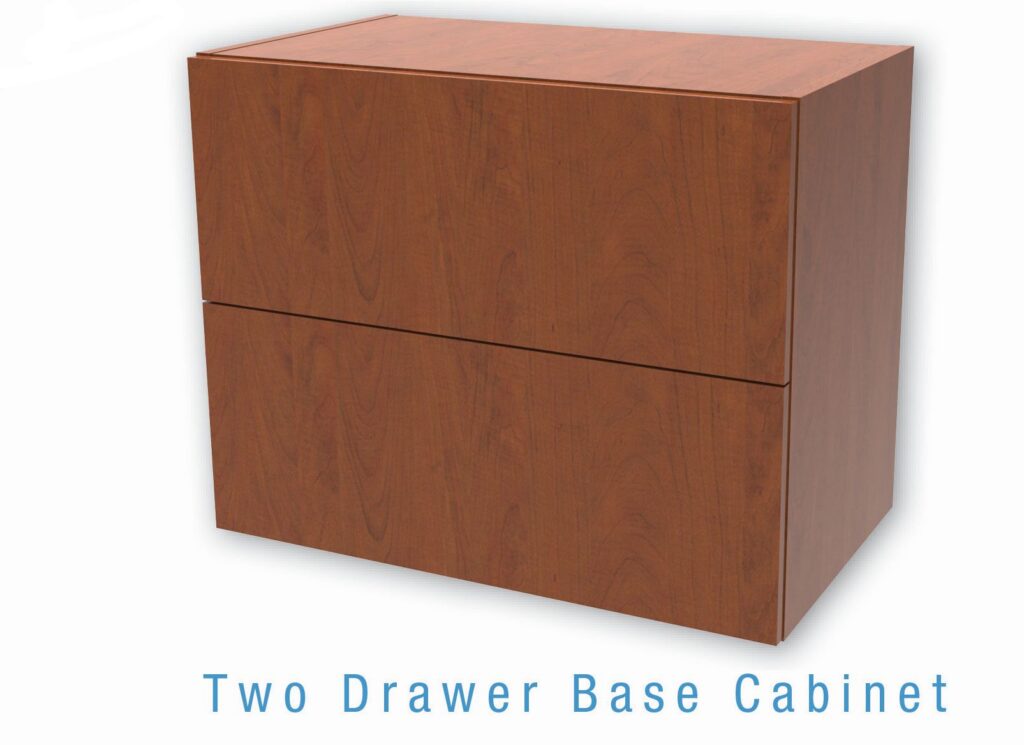

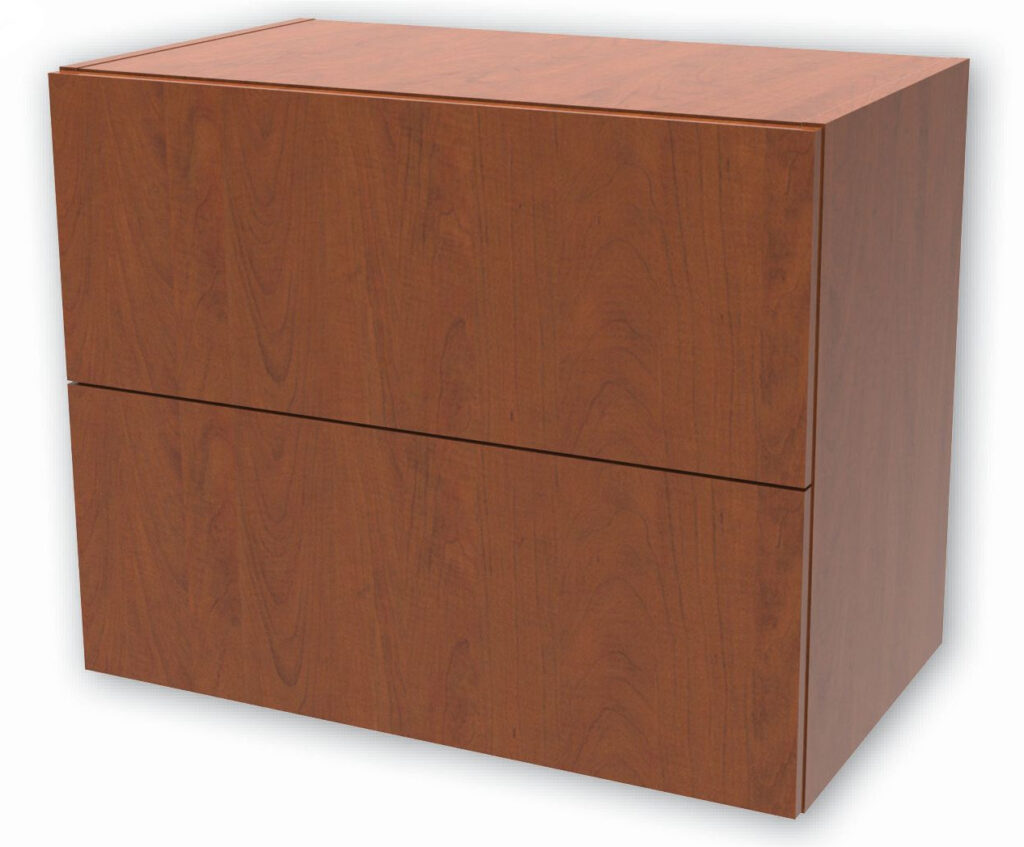

Two Drawer Base Cabinet
ItemWDH
LADF181824B18 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADF181824B24 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADF181824B30 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LADF181824B36 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

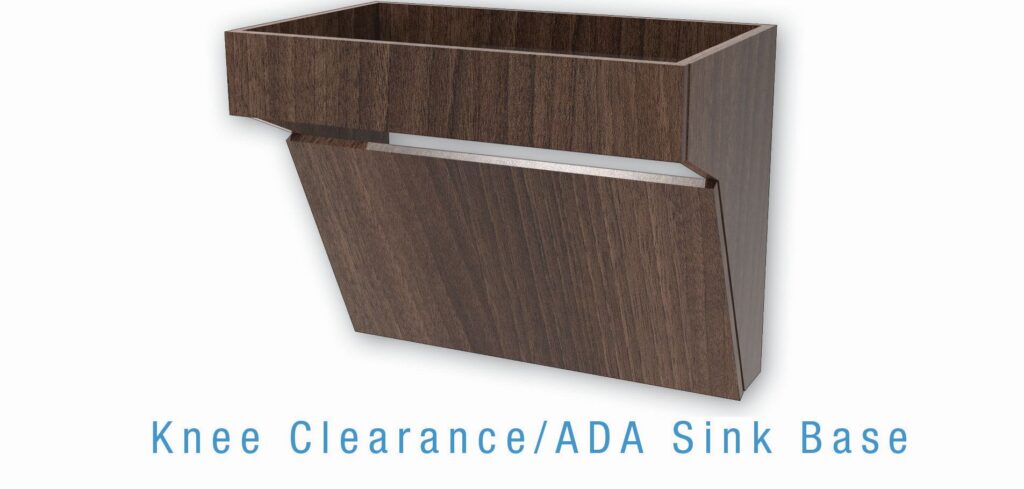

Knee Clearance ADA Sink Base
ItemWDH
LASC181824KNC18 in. / 45.72 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASC241824KNC24 in. / 60.96 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASC301824KNC30 in. / 76.2 cm17.5 in. / 44.45 cm24 in. / 60.96 cm
LASC361824KNC36 in. / 91.44 cm17.5 in. / 44.45 cm24 in. / 60.96 cm

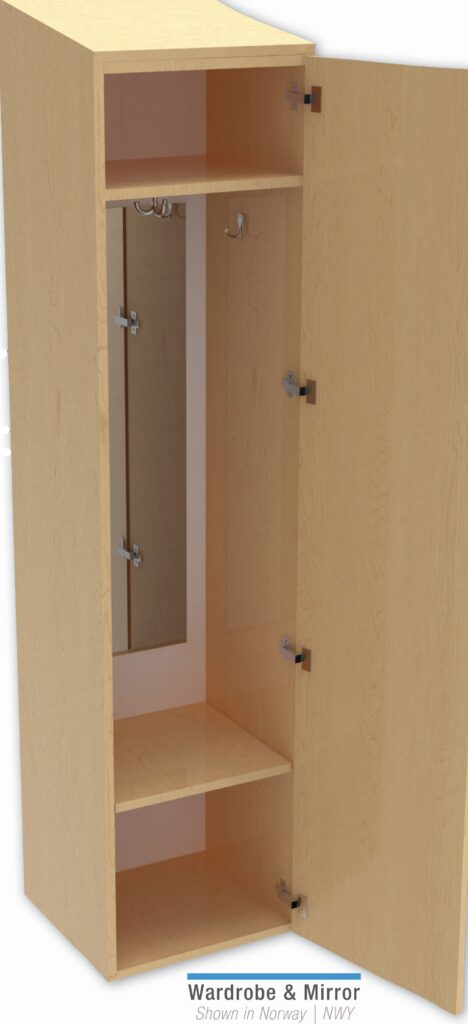

Wardrobe and Mirror
ItemWDH
LAWDC18187218 in / 45.72 cm17.5 in / 44.45 cm72in / 182.88 cm - 76 in / 193.04 cm
LAWDC24187224 in / 60.96 cm17.5 in / 44.45 cm72in / 182.88 cm - 76 in / 193.04 cm

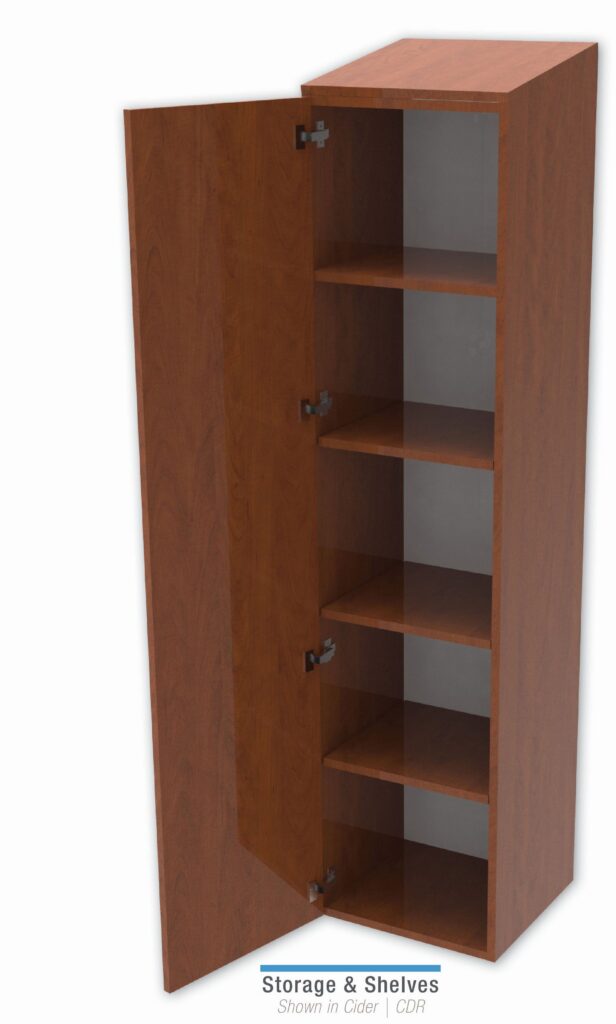

Storage and Shelves
ItemWDH
LATSC18187218 in / 45.72 cm17.5 in / 44.45 cm72in / 182.88 cm - 76 in / 193.04 cm
LATSC24187224 in / 60.96 cm17.5 in / 44.45 cm72in / 182.88 cm - 76 in / 193.04 cm

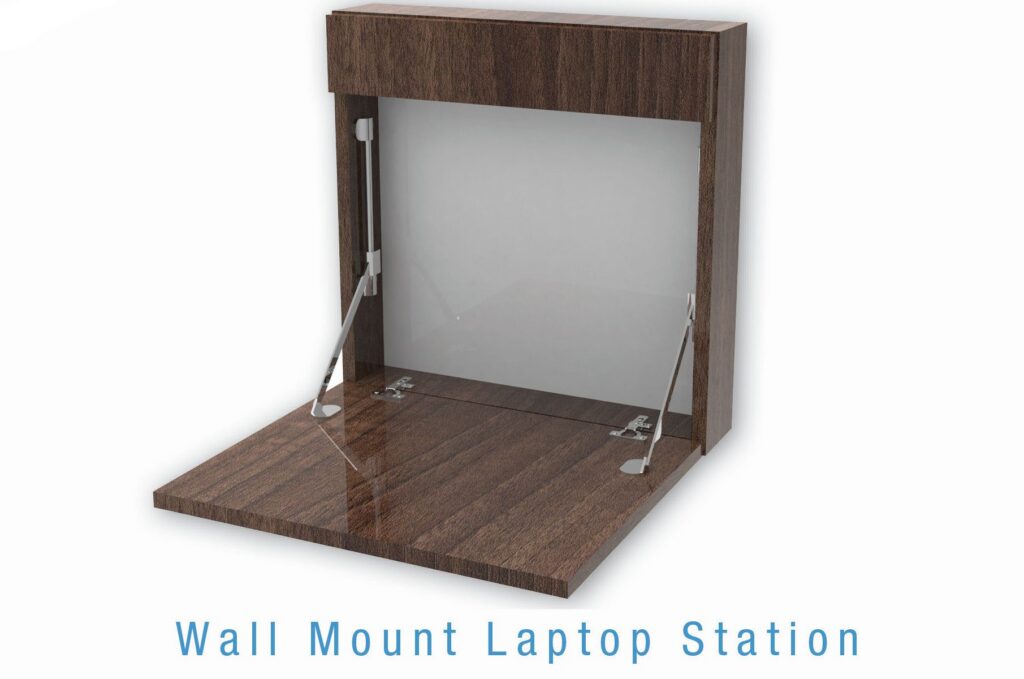

Wall Mount Laptop Station
ItemWDH
LAWMLTS20 in / 50.8 cm4 in / 10.16 cm20 in / 50.8 cm
LAWMLTS-LPC20 in / 50.8 cm4 in / 10.16 cm20 in / 50.8 cm
